Equipment Introduction

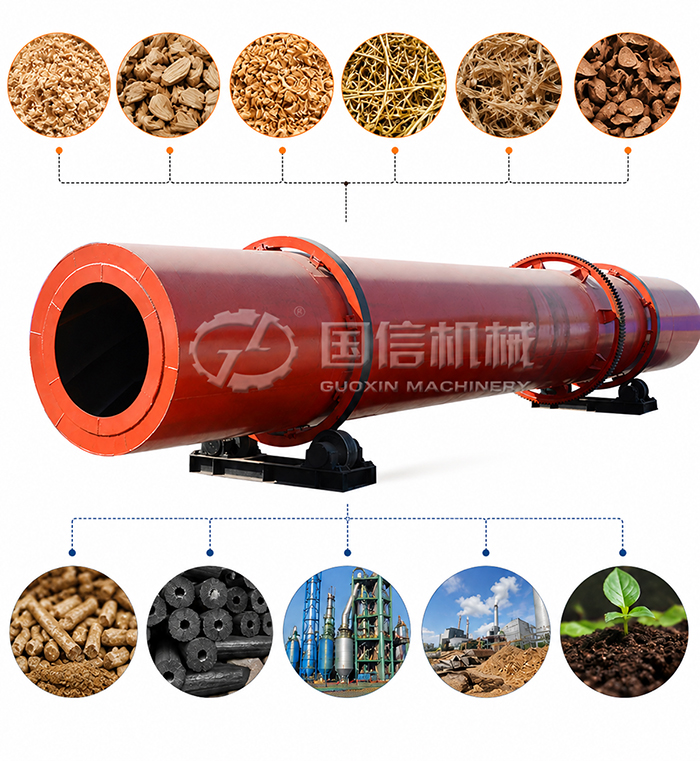

Biomass Rotary Dryer is specially designed for drying high-moisture biomass materials such as sawdust, wood chips, rice husk, straw, bagasse, palm fiber, coconut shell powder, and agricultural waste. With continuous operation, large capacity, and low energy consumption, it is widely used in biomass pellet plants, charcoal production lines, biofuel processing, and organic fertilizer industries.

Equipment Advantages

High-efficiency drying — Materials are in full contact with hot air, resulting in rapid drying.
Continuous operation — Supports 24-hour uninterrupted production with automatic feeding and unloading.
High applicability — Can process various biomass and granular materials.
Energy-saving and environmentally friendly — High thermal energy utilization rate; can be equipped with a dust removal system.
Sturdy structure — Wear-resistant and durable, with low maintenance costs.

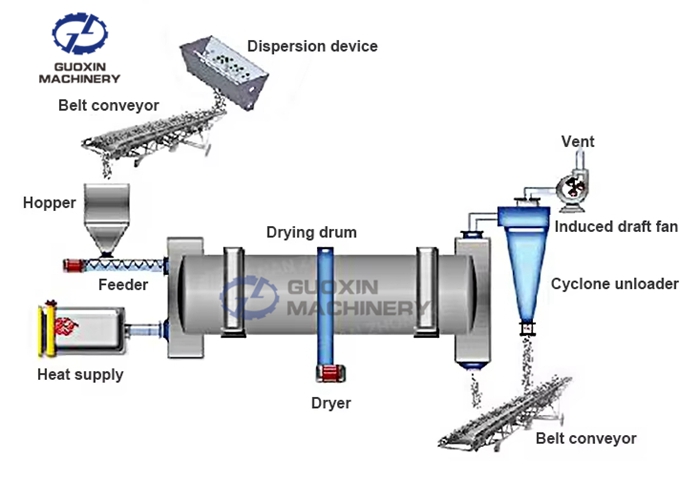

Working Principle
The biomass dryer rotates continuously while hot air flows through the drum. Wet material is fed into the rotating drum via a conveyor or screw feeder. Inside the drum, lifting plates repeatedly lift and disperse the material, ensuring full contact with the hot airflow.
As the drum rotates, moisture evaporates rapidly through efficient heat exchange. Finally, the dried material is automatically discharged from the outlet, achieving continuous and uniform drying.

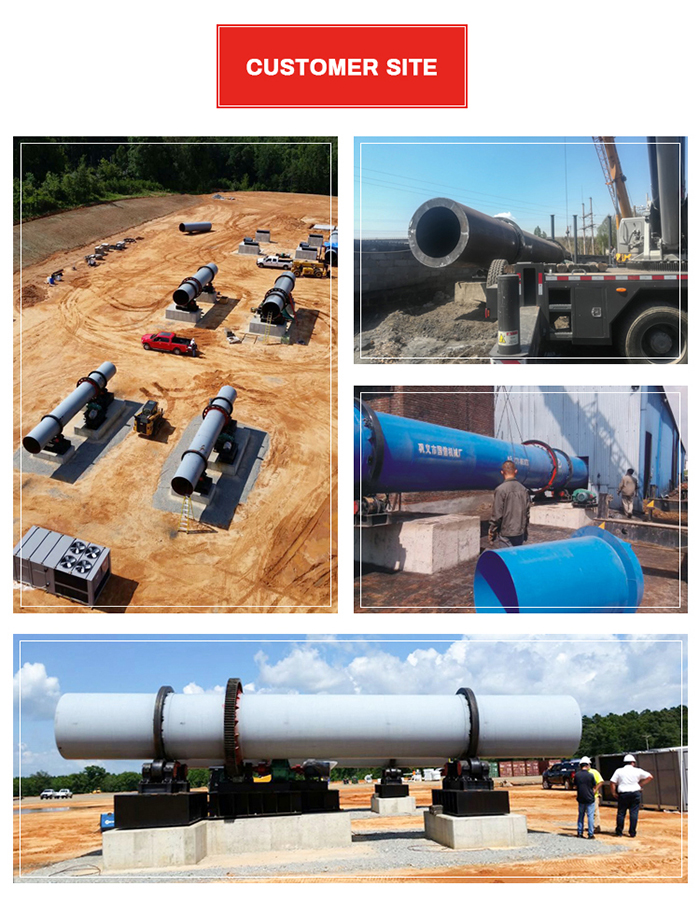

We have completed many design cases for our clients around the world. If you want more information, you can contact us 24 hours a day and a professional engineer will answer your questions. Guoxin Drying has 30 years of rich industry experience and a database of hundreds of agricultural products drying processes. It can customize production lines and supporting facilities at different prices according to customers’ needs for different materials.
